How to import external database backups using the Percona Everest UI

Here are the steps to import external database backups using Percona Everest UI:

1. Log in to the Percona Everest UI.

2. From the Percona Everest homepage, click Import. Select the database type you want to import(MySQL, PostgreSQL, or MongoDB). The Basic Information page will be displayed.

3. Fill in the details on the Basic information page and click Continue. This will take you to the Import info page.

4. Select the DataImporter from the dropdown on the Import information page. Follow the steps below based on the selected database:

MongoDB backups MySQL backups PostgreSQL backups

Import MongoDB backups

Provide the details of the backup you want to import:

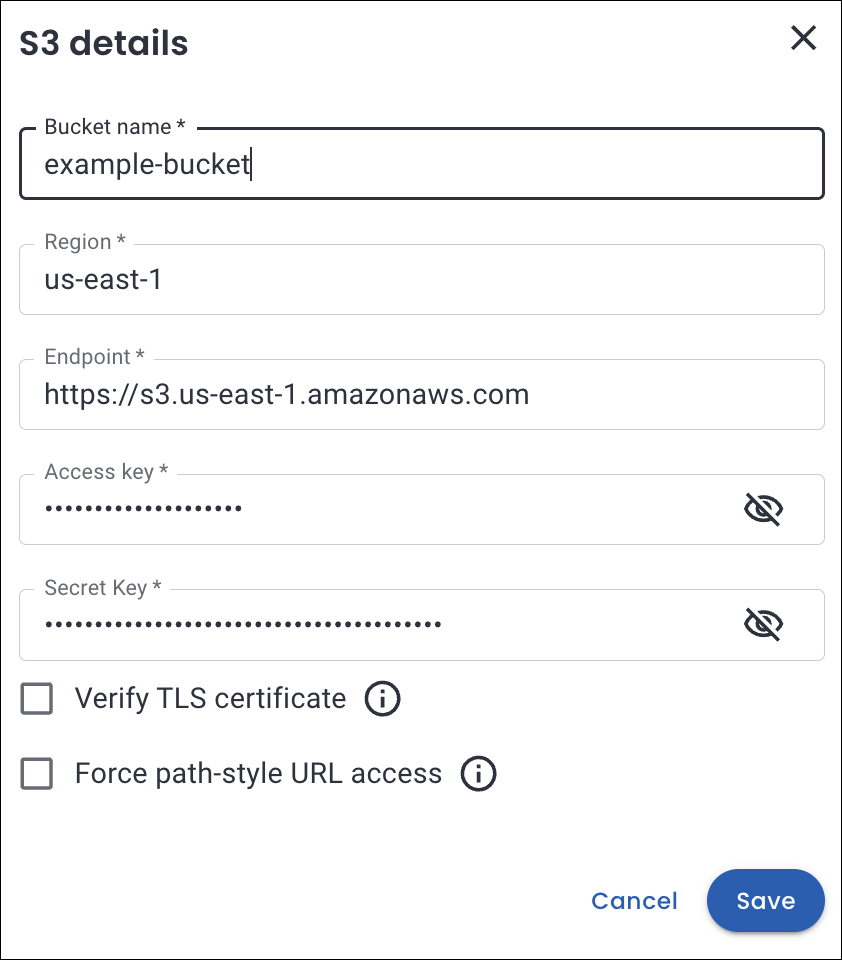

1. Click Fill details to provide your S3 storage details. The S3 details page will open.

   Enter the following:

   • Bucket name: Enter the unique name identifying your S3 storage bucket.
   • Region: Select the geographical AWS region where your bucket is hosted (e.g., us-east-1, eu-west-1)
   • Access key: Enter your AWS Access Key ID (like a username for API access).
   • Secret key: Enter your AWS Secret Access Key (like a password for secure API access).

   Click Save.



2. In the File directory section, specify the path within your S3 bucket where the backup files are stored. Click Save.

   Important

   Percona Everest does not validate file paths or verify the existence of files in the specified storage buckets. Make sure that the backup directory path is correct and accessible.

   To verify that the specified path exists, you can use the AWS CLI:

   aws s3 ls s3://<bucket-name>/<path-to-backup> --region <region>


   Find the file path using AWS CLI

   Prerequisites: Ensure AWS CLI is installed and configured on your system. To install AWS CLI, refer to the AWS CLI installation guide.

   1. Run the following command:

      cat > ~/.aws/credentials
      [default]
      aws_access_key_id = SECRET
      aws_secret_access_key = SECRET


   2. Navigate your S3 bucket structure:

      # List the folders in the bucket
      aws s3 ls <S3 bucket-name>

      # Output
      PRE mongodb-zh5/
      PRE postgresql-6az/

      # List the subfolders
      aws s3 ls <S3 bucket-name>/mongodb-zh5/

      # Output
      PRE 02d0a297-16ca-4b9f-8073-2f16607de3c9/

      # Drill down further
      aws s3 ls <S3 bucket-name>/mongodb-zh5/02d0a297-16ca-4b9f-8073-2f16607de3c9/

      # Output
      PRE 2025-07-01T07:13:32Z/

      # Dig deeper
      aws s3 ls <S3 bucket-name>/mongodb-zh5/02d0a297-16ca-4b9f-8073-2f16607de3c9/2025-07-01T07:13:32Z/

      # Output
      PRE rs0/

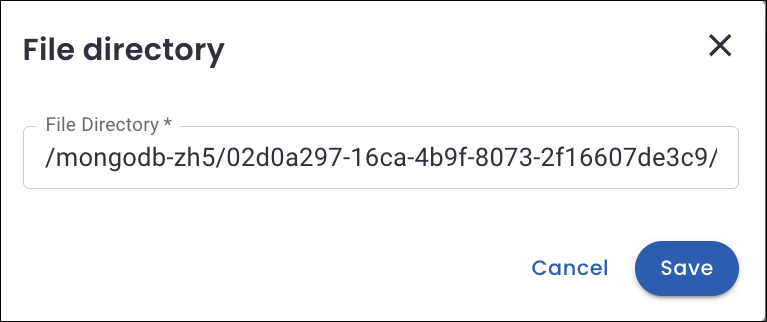

      The file path for MongoDB will be:
      /mongodb-zh5/02d0a297-16ca-4b9f-8073-2f16607de3c9/2025-07-01T07:13:32Z/

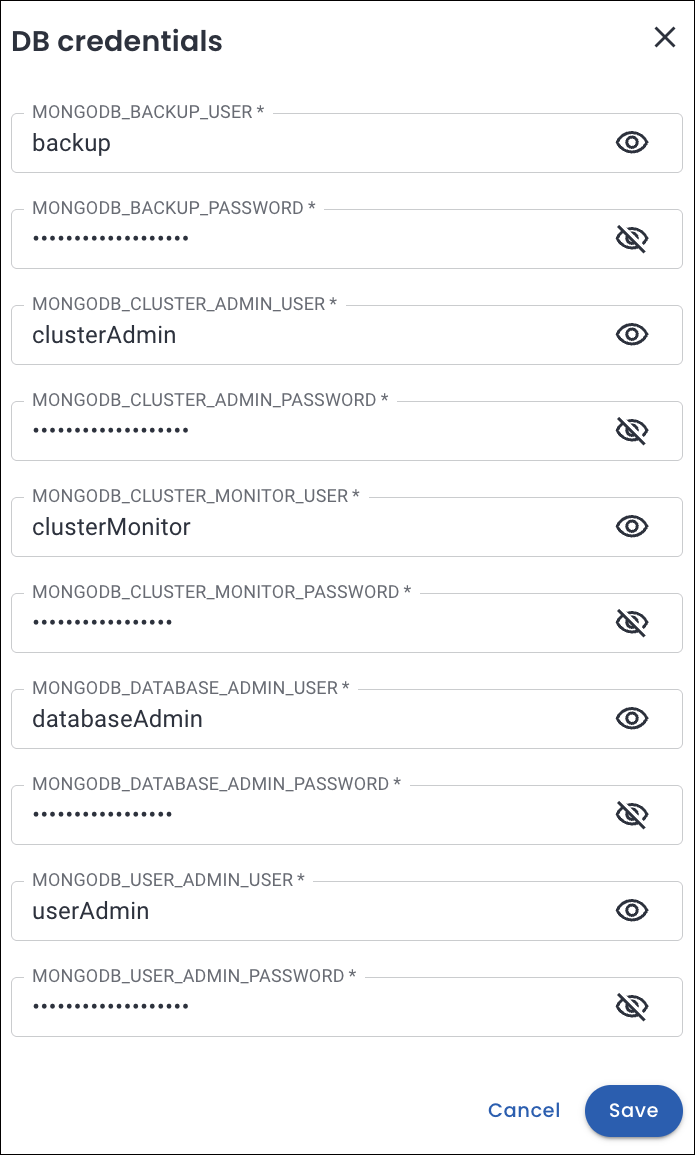

3. In the DB Credentials section, enter the key-value pairs of the user secrets.

   Retrieve the credentials from the Kubernetes secret

   Run the following command to decode the credentials stored in the Kubernetes secret:

   kubectl get secret everest-secrets-mongodb-zh5 -n everest -o jsonpath="{.data}" | jq 'map_values(@base64d)'


   Replace everest-secrets-mongodb-zh5 with your secret name.

   Output

   {
       "MONGODB_BACKUP_PASSWORD": "3mBRT5XuJSrMzwhB",
       "MONGODB_BACKUP_USER": "backup",
       "MONGODB_CLUSTER_ADMIN_PASSWORD": "hE1M5Eaut93uWJGCykd",
       "MONGODB_CLUSTER_ADMIN_USER": "clusterAdmin",
       "MONGODB_CLUSTER_MONITOR_PASSWORD": "4ICXY35dqCfjZYR2p7",
       "MONGODB_CLUSTER_MONITOR_USER": "clusterMonitor",
       "MONGODB_DATABASE_ADMIN_PASSWORD": "5aQbEZEDjhoAWoSbc03",
       "MONGODB_DATABASE_ADMIN_USER": "databaseAdmin",
       "MONGODB_USER_ADMIN_PASSWORD": "a9pb12A09pSNchldzq",
       "MONGODB_USER_ADMIN_USER": "userAdmin"
       }




4. Click Continue to proceed. You will see the basic information page for your target database.

5. Enter the information and click Continue until you reach the end of the wizard.

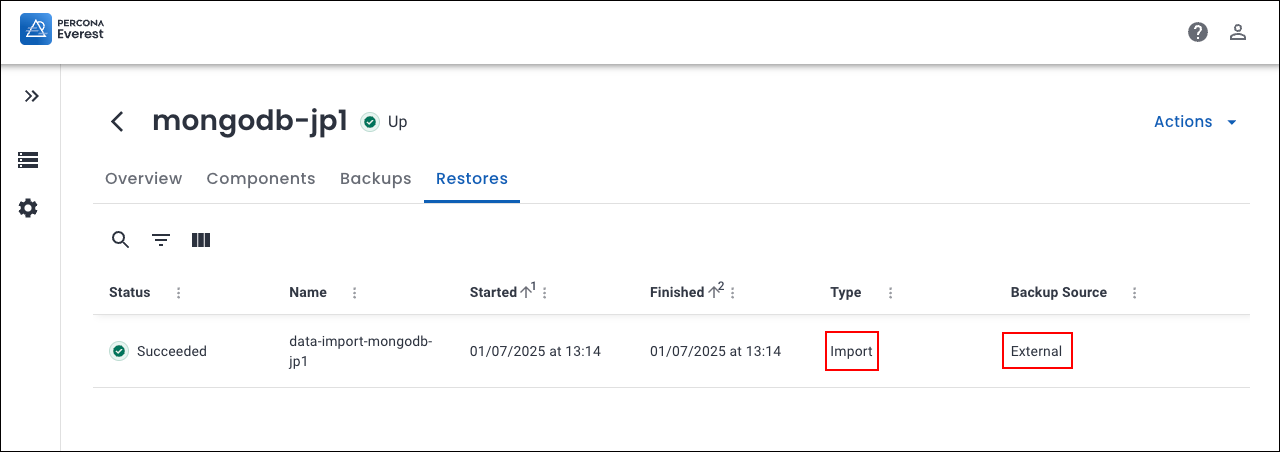

   Your backup import process will now start. Once the import is successful, the database status will eventually change to Up.

Import MySQL backups

Provide the details of the backup you want to import:

1. Click Fill details to provide your S3 storage details. The S3 details page will open.

   Enter:

   • Bucket name: Enter the unique name identifying your S3 storage bucket.
   • Region: Select the geographical AWS region where your bucket is hosted (e.g., us-east-1, eu-west-1)
   • Access key: Enter your AWS Access Key ID (like a username for API access).
   • Secret key: Enter your AWS Secret Access Key (like a password for secure API access).

   Click Save.



2. In the File directory section, specify the path within your S3 bucket where the backup files are stored. Click Save.

   Important

   Percona Everest does not validate file paths or verify the existence of files in the specified storage buckets. Make sure that the backup directory path is correct and accessible.

   To verify that the specified path exists, you can use the AWS CLI:

   aws s3 ls s3://<bucket-name>/<path-to-backup> --region <region>


   Example

   Find the file path using AWS CLI

   Prerequisites: Ensure AWS CLI is installed and configured on your system. To install AWS CLI, follow the AWS CLI installation guide.

   1. Run the following command:

      cat > ~/.aws/credentials
      [default]
      aws_access_key_id = SECRET
      aws_secret_access_key = SECRET


   2. Navigate your S3 bucket structure:

      # List the folders in the bucket
      aws s3 ls <S3 bucket-name>


      # Output
      PRE mongodb-zh5/
      PRE mysql-wih/


      # List the subfolders
      aws s3 ls <S3 bucket-name>/mysql-wih/

      # Output
      PRE 515f9e1b-301d-4b34-b2bd-959713bc70d0/


      # Drill down further
      aws s3 ls <S3 bucket-name>/mysql-wih/515f9e1b-301d-4b34-b2bd-959713bc70d0/


      # Output
      PRE mysql-wih-2025-07-01-11:40:18-full.sst_info/
      PRE mysql-wih-2025-07-01-11:40:18-full/
      2025-07-01 17:10:49
      25765 mysql-wih-2025-07-01-11:40:18-full.md5
      2025-07-01 17:10:36
      128 mysql-wih-2025-07-01-11:40:18-full.sst_info.md5

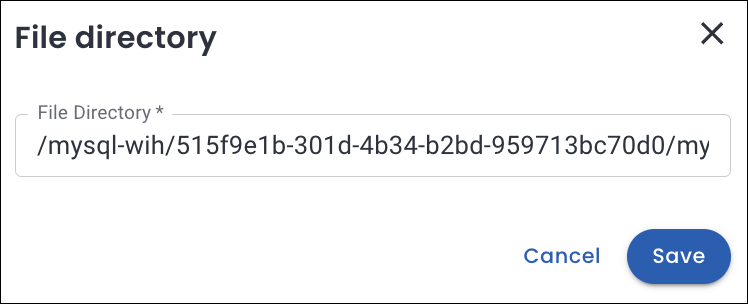

      The full file path for MySQL will be:
      /mysql-wih/515f9e1b-301d-4b34-b2bd-959713bc70d0/mysql-wih-2025-07-01-11:40:18-full/

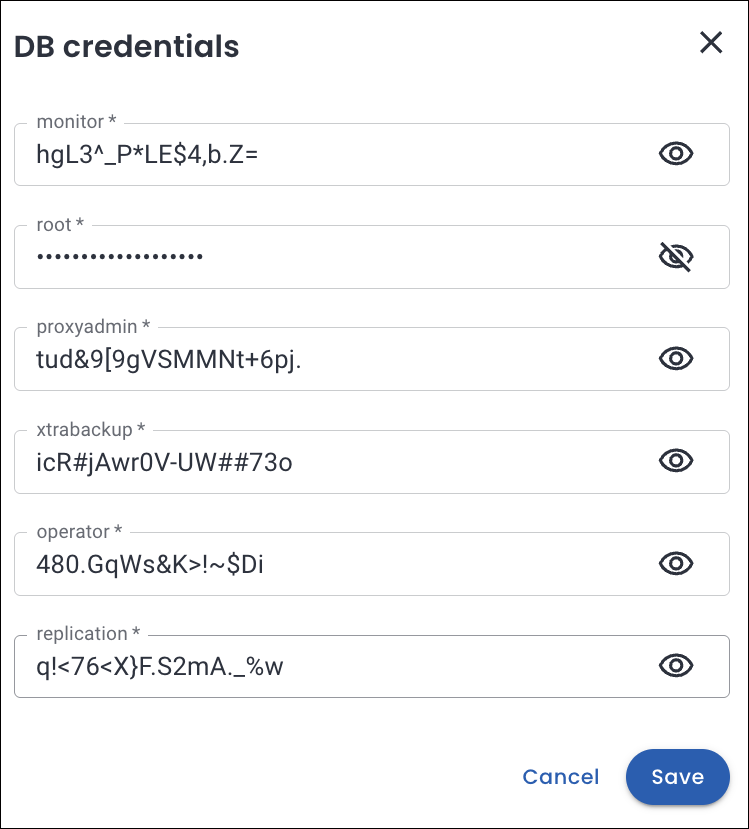

3. In the DB Credentials section, enter the key-value pairs of the user secrets.



   Retrieve the DB credentials from the Kubernetes secrets

   Run the following command to decode the credentials stored in the Kubernetes secret:

   kubectl get secret everest-secrets-mysql-wih -n everest -o jsonpath="{.data}" | jq 'map_values(@base64d)'


   Output

   {
       "monitor": "hgL3^_P*LE$4,b.Z=",
       "operator": "480.GqWs&K>!~$Di",
       "proxyadmin": "tud&9[9gVSMMNt+6pj.",
       "replication": "q!<76<X}F.S2mA._%w",
       "root": "_bvt*Ip*@r-JOpz>q@1",
       "xtrabackup": "icR#jAwr0V-UW##73o"
   }


4. Click Continue to proceed. You will see the basic information page for your target database.

5. Enter the information and click on continue until you reach the end of the wizard.

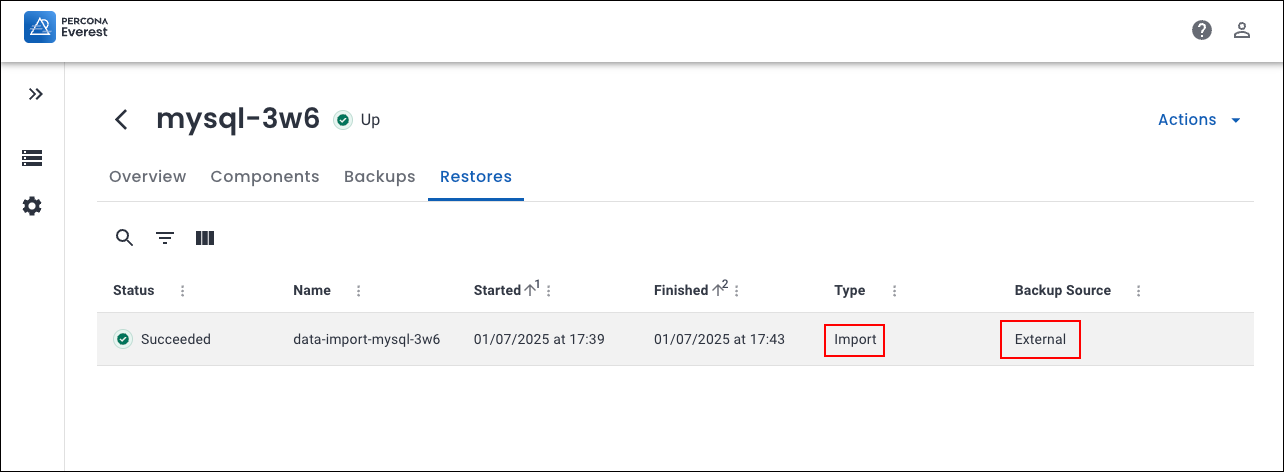

   Your backup import process will now start. Once the import is successful, the database status will eventually change to Up.

Import PostgreSQL backups

Provide the details of the file you want to import:

1. Click Fill details to provide your S3 storage details. The S3 details page will open.

   Enter:

   • Bucket name: Enter the unique name identifying your S3 storage bucket.
   • Region: Select the geographical AWS region where your bucket is hosted (e.g., us-east-1, eu-west-1)
   • Access key: Enter your AWS Access Key ID (like a username for API access).
   • Secret key: Enter your AWS Secret Access Key (like a password for secure API access).

   Click Save.



2. In the File directory section, specify the path within your S3 bucket where the backup files are stored. Click Save.

   Important

   Percona Everest does not validate file paths or verify the existence of files in the specified storage buckets. Make sure that the backup directory path is correct and accessible.

   To verify that the specified path exists, you can use the AWS CLI:

   aws s3 ls s3://<bucket-name>/<path-to-backup> --region <region>


   Find the file path using AWS CLI

   Find the file path using AWS CLI

   Prerequisites: Ensure AWS CLI is installed and configured on your system. To install AWS CLI, refer to the AWS CLI installation guide.

   1. Run the following command:

      cat > ~/.aws/credentials
      [default]
      aws_access_key_id = SECRET
      aws_secret_access_key = SECRET


   2. Navigate your S3 bucket structure:

      # List the folders in the bucket
      aws s3 ls <S3 bucket-name>

      # Output
      PRE postgresql-nf9/

      # List the subfolders:
      aws s3 ls <S3 bucket-name>/postgresql-nf9/

      # Output
      PRE bd68c303-33eb-4368-b564-2cc4b9c71163/

      # Drill down further:
      aws s3 ls <S3 bucket-name>/postgresql-nf9/bd68c303-33eb-4368-b564-2cc4b9c71163/

      # Output
      PRE archive/
      PRE backup/


      # Go into the backup folder
      aws s3 ls <S3 bucket-name>/postgresql-nf9/bd68c303-33eb-4368-b564-2cc4b9c71163/backup/

      # Output
      PRE db/


      # Go into the db folder
      aws s3 ls <S3 bucket-name>/postgresql-nf9/bd68c303-33eb-4368-b564-2cc4b9c71163/backup/db/

      # Output
      PRE 20250702-085755F/
      PRE backup.history/
      2025-07-02 14:28:53   1174 backup.info
      2025-07-02 14:28:53   1174 backup.info.copy

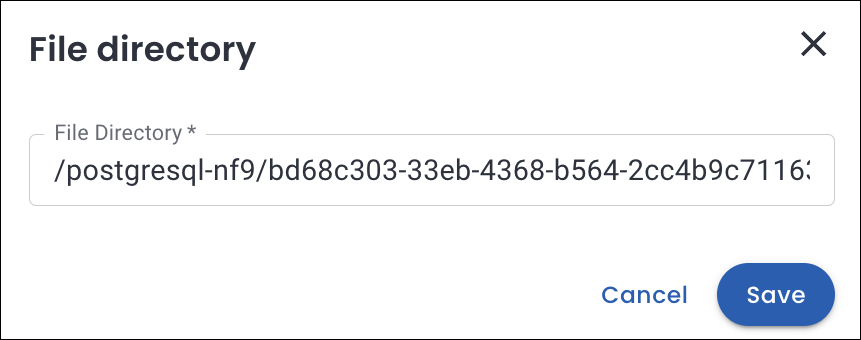

      The full file path for PostgreSQL will be:
      /postgresql-nf9/bd68c303-33eb-4368-b564-2cc4b9c71163/backup/db/20250702-085755F/




3. Click Continue. You will see the basic information page for your target database.

4. Enter the information and click Continue until you reach the end of the wizard.

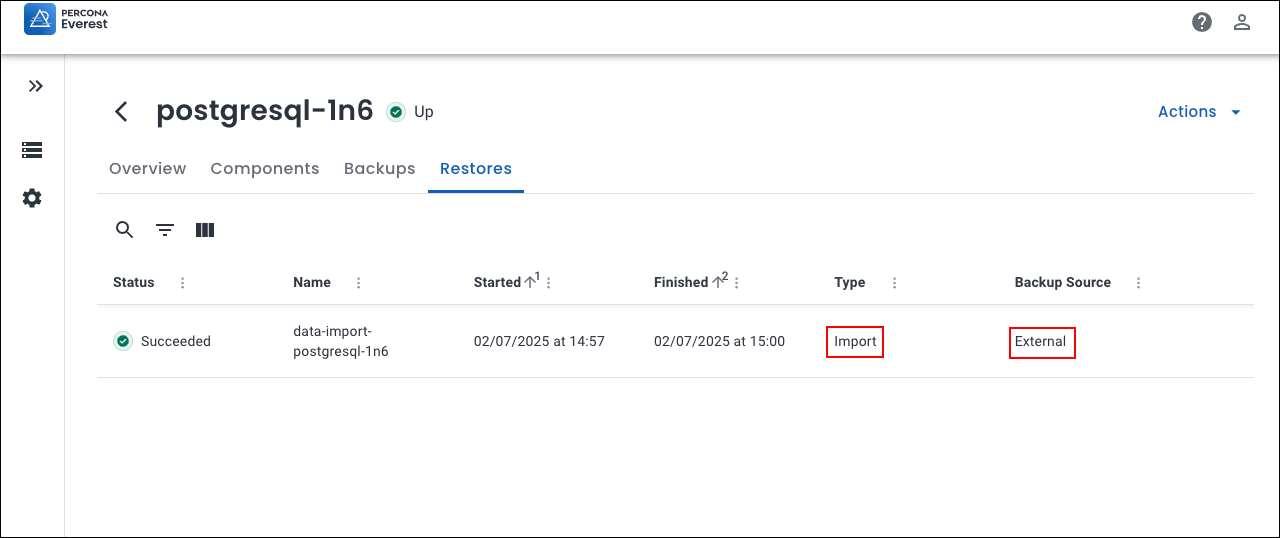

   Your backup import process will now start. Once the import is successful, the database status will eventually change to Up.
